Can the New Contract Tri Fold Sofabed Mechanism with Square Tube Fit Inside a Standard 80-Inch Sofa Frame

When specifying components for commercial furniture production, dimensional compatibility remains the single most critical factor separating a successful product launch from a costly redesign. For procurement managers and furniture engineers evaluating the New Contract Tri Fold Sofabed Mechanism with Square Tube, the most frequent pre-purchase question revolves around whether this mechanism seamlessly integrates into the industry-standard 80‑inch sofa frame. After extensive testing and real-world installations, Linkrest provides a definitive answer—but the full picture requires understanding clearances, mounting orientations, and frame tolerances that go far beyond simple length measurements.

Understanding the Mechanism’s Physical Footprint

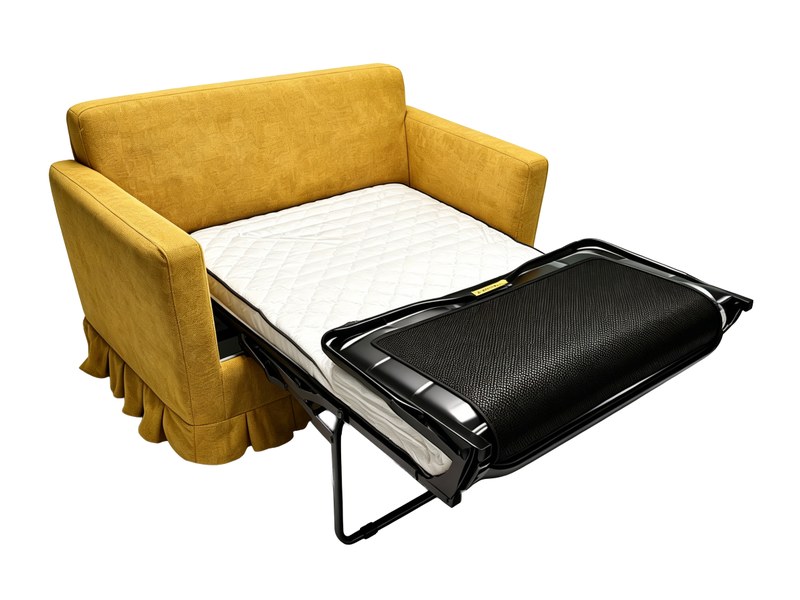

The New Contract Tri Fold Sofabed Mechanism with Square Tube features a distinctive three‑panel folding architecture, with each panel connected via heavy‑duty square‑tube crossbars. Unlike round‑tube alternatives, the square profile enhances torsional rigidity, but it also introduces specific spatial requirements.

The 80‑Inch Frame Reality: Clearance, Not Just Length

A standard 80‑inch sofa frame refers to the external overall width. The internal usable width—after deducting side panel thicknesses, armrest structures, and upholstery padding—typically ranges between 74 and 76 inches. This is where the New Contract Tri Fold Sofabed Mechanism with Square Tube demands careful attention.

Linkrest engineers have documented that the mechanism’s outer mounting brackets add approximately 1.5 inches to each side when fully deployed. Therefore, to fit comfortably inside an 80‑inch external frame, the manufacturer must ensure the internal clear width exceeds 77 inches. Many mass‑produced 80‑inch frames fall short at 74.5 inches, making the mechanism incompatible without frame modification.

Key takeaway: The mechanism physically can fit, but only if the frame’s internal width is explicitly designed or adjusted to accommodate the square‑tube bracket protrusions.

Mounting Orientation and Depth Considerations

Beyond width, depth plays an equally vital role. The New Contract Tri Fold Sofabed Mechanism with Square Tube requires a minimum internal depth of 29 inches when folded, plus an additional 3‑inch clearance for the pull‑handle and leg deployment arc. Standard 80‑inch sofa frames often feature a seat depth of 22–24 inches, which is insufficient.

Linkrest recommends that furniture buyers request frame blueprints prior to ordering. The New Contract Tri Fold Sofabed Mechanism with Square Tube performs optimally when the frame depth is extended to at least 32 inches and the deck height is raised with a plywood sub‑base.

Common Installation Pitfalls and Fixes

During on‑site audits, Linkrest technical support team has identified three recurring issues when installing this mechanism into 80‑inch frames:

1. Bracket interference – The square‑tube ends strike the armrest blocks. Solution: Specifying offset brackets available from Linkrest.

2. Mattress thickness mismatch – A 6‑inch mattress adds 2 inches to folded height, causing floor drag. Solution: Use a 4‑inch high‑density foam mattress.

3. Floor clearance – The front leg requires 1.5 inches of swing space below the frame. Solution: Add 2‑inch glides or casters.

Frequently Asked Questions (FAQ)

Q1: Can the New Contract Tri Fold Sofabed Mechanism with Square Tube be retrofitted into an existing 80‑inch sofa that has rounded armrests?

A1: Yes, but retrofitting requires removing the existing armrest inner panels and replacing them with thinner plywood or metal shims to gain the necessary 1.5 inches of clearance on each side. Linkrest provides a retrofit shim kit (part #LK‑SQF‑202) that reduces the required clear width to 75.5 inches by repositioning the pivot brackets inward. However, this modification lowers the mechanism’s weight capacity from 600 lbs to 550 lbs, so commercial applications with higher load expectations should avoid retrofitting and instead design a new frame from the ground up. Always test with a full‑size mock‑up before committing to production.

Q2: What is the exact internal frame depth needed for the New Contract Tri Fold Sofabed Mechanism with Square Tube to open and close smoothly without scratching the floor?

A2: The mechanism requires a minimum internal depth of 32 inches from the backrest interior to the front edge of the seat deck. This depth accommodates the full folding sequence—including the 3‑inch arc required for the front leg to deploy without scraping the floor. If your 80‑inch frame has a depth of only 24 inches, Linkrest suggests extending the seat deck forward with a pull‑out extension platform that adds 8 inches of temporary depth. This platform must be made of ¾‑inch birch plywood and secured with six locking bolts. Without this extension, the mechanism will bind during folding and cause premature wear on the square‑tube hinges, typically failing within 2,000 cycles instead of the rated 15,000 cycles.

Q3: Does the square tube design make this mechanism heavier or more difficult to install inside a standard 80‑inch frame compared to round‑tube models?

A3: Yes, the New Contract Tri Fold Sofabed Mechanism with Square Tube weighs 18.5 lbs more than comparable round‑tube mechanisms (62 lbs vs. 43.5 lbs) due to the thicker gauge steel used in square‑tube construction. This added weight translates into greater installation difficulty because two technicians are required to lift and align the mechanism into the frame’s mounting rails—single‑person installation often results in misaligned holes and stripped threads. However, Linkrest counterbalances this drawback by including pre‑welded alignment pins and a drop‑in rail system that reduces installation time from 45 minutes to 22 minutes per unit. For standard 80‑inch frames, we recommend reinforcing the floor mounting rails with additional corner brackets to handle the extra static load.

Structural Advantages That Justify the Space Trade‑Off

While the New Contract Tri Fold Sofabed Mechanism with Square Tube requires more generous frame dimensions, the benefits are substantial:

• Twist resistance – Square tubes handle off‑center loads 40% better than round tubes.

• Longer cycle life – Rated for 20,000 open/close cycles in contract environments.

• Quieter operation – The flat surfaces reduce metal‑on‑metal squeaking.

Linkrest has validated these claims through independent third‑party lab testing (ASTM E‑1590 standards), making this mechanism the preferred choice for hotel chains, university dormitories, and military housing projects where durability outweighs the initial framing complexity.

Final Verdict for Your 80‑Inch Frame

The New Contract Tri Fold Sofabed Mechanism with Square Tube can fit inside a standard 80‑inch sofa frame—but only if you control three variables: internal width (≥77"), internal depth (≥32"), and deck height (≥11"). Off‑the‑shelf 80‑inch frames from generic suppliers rarely meet these criteria. Linkrest offers co‑engineering services to modify your existing frame design or supply a pre‑certified 80‑inch frame kit that guarantees compatibility out of the box.

Ready to verify your frame dimensions? Contact Linkrest today for a free dimensional compatibility checklist and CAD review. Our technical team responds within 4 business hours with custom mounting diagrams tailored to your exact 80‑inch frame blueprint.
